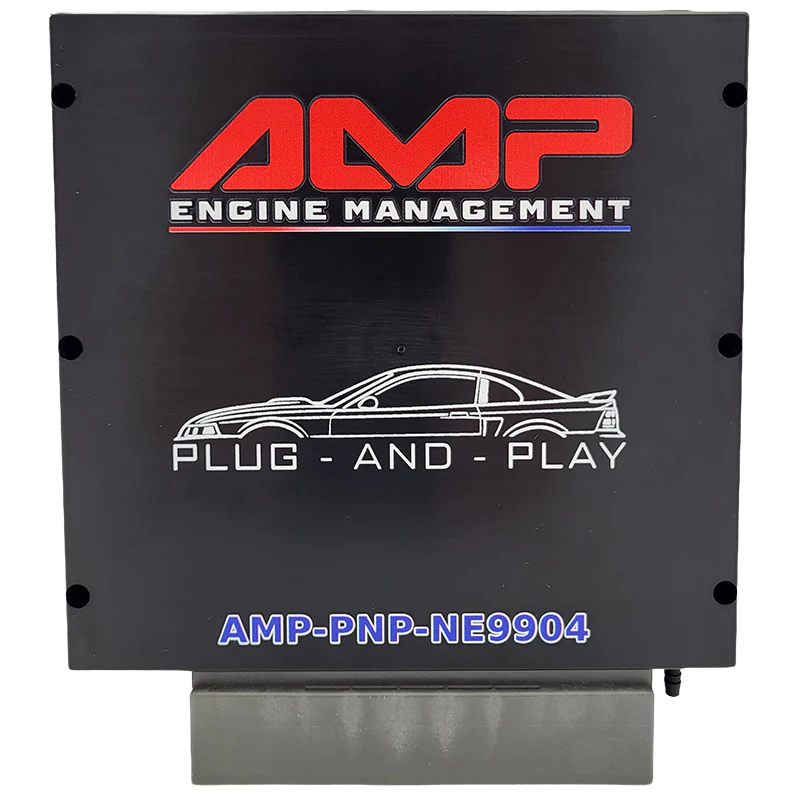

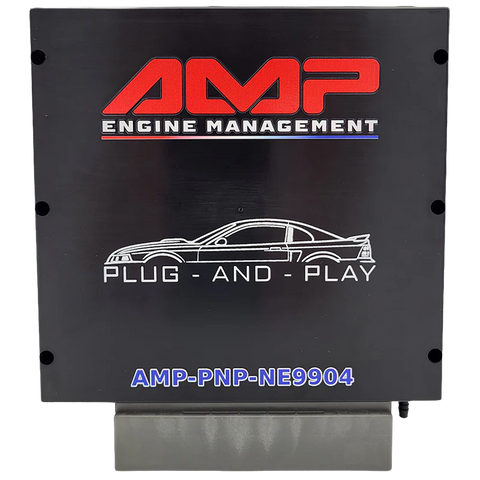

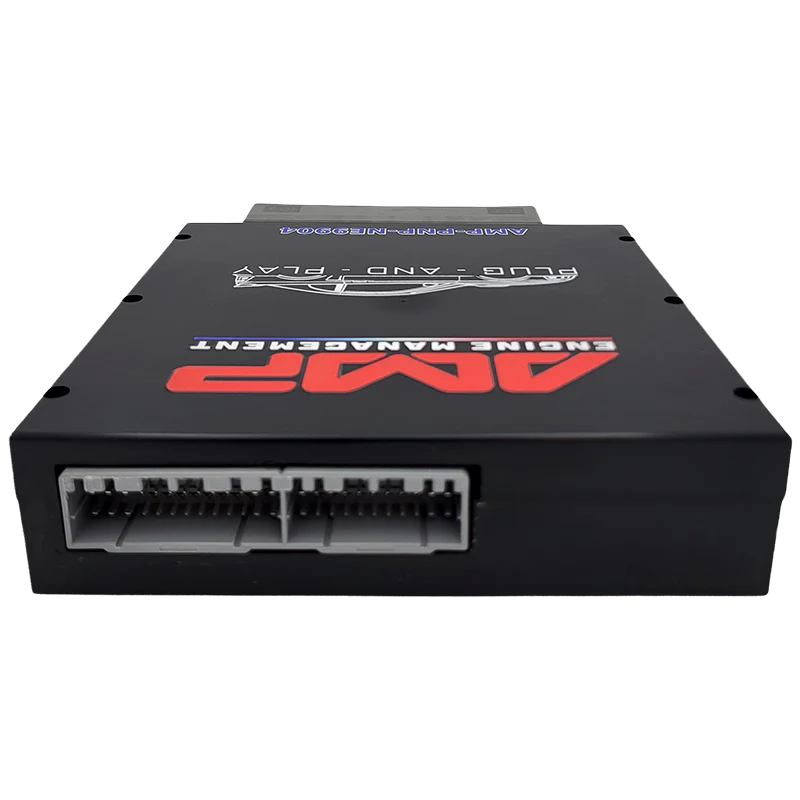

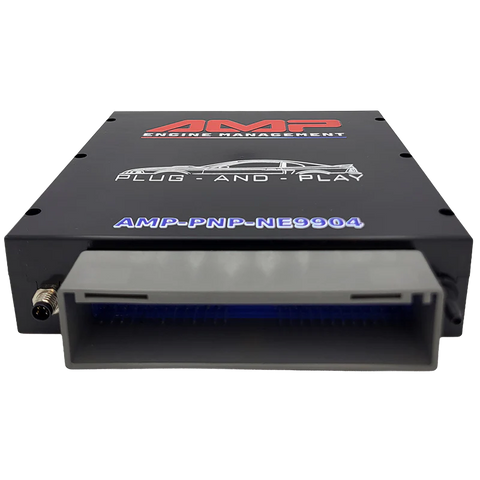

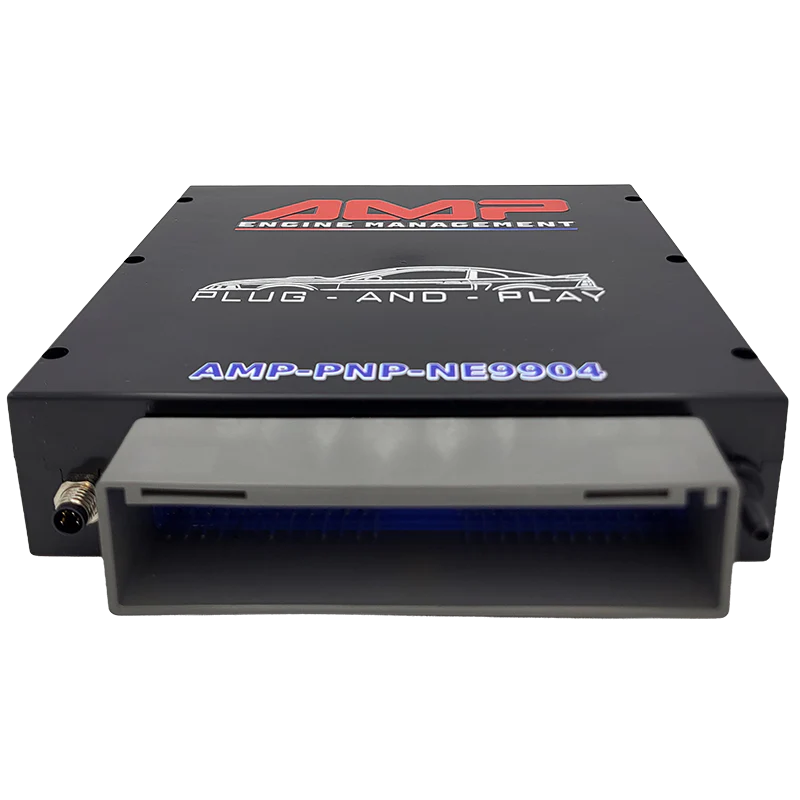

Ford New Edge Mustang 1999-2004 MS3Pro PNP Plug and Play

  • Sale
  • Regular price $1,499.00
Tax included. Shipping calculated at checkout.


Get your 99-04 V8 Mustang GT ‘RACE-READY’ with MS3Pro Plug & Play!  This ECU installs in less than an hour, arrives out-of-the-box ready for up to 44lbs boost and is CAN enabled for seamless control of other MegaSquirt or third party devices. PLUS, MS3Pro handles Factory Dash Communication, so stock gauges and warning lights function just like they should!  Just look at all the features:

99-04 V8 Mustang GT MS3Pro Plug and Play Features:

  • Fully Plug and Play Installation – No wiring required for basic functionality.
    • Average install time is under 1 hour!
  • Base map pre-loaded to help your engine start on the first turn of the key
  • Real time tuning and data logging with a laptop connection
  • 8 GB internal data logging with built in SD card
  • Supports most aftermarket wideband sensors/controllers
  • FACTORY Dash Cluster Control! YES, we painstakingly decoded Ford’s dashboard communications to allow your dash to work just like factory!  No one else does this; everyone else leaves your dash dead in the water requiring an aftermarket display solution. This feature alone saves you $1,000 or more!

Does your speedometer read incorrectly due to a gear ratio change?  NOW you can easily fix it in TunerStudio and save a costly trip to your tuner!

Fully Tunable Engine Control!

  • 16×16 Fuel Tables allow high resolution tuning
  • 16×16 Ignition Tables
  • Multiple Acceleration enrichment strategies
  • Closed Loop Idle Speed Control
  • Air Conditioner Control
  • 8 sequential fuel injector channels with individual trim tables
  • 8 sequential ignition channels with individual trim tables
  • Onboard peak and hold drivers support both high and low impedance injectors – No external ballast resistor is needed!
  • Allows removal of stock MAF sensor

Advanced Feature Set (Included!)

  • 12×12 Air Fuel Ratio Target Tables for use with wideband O2 sensor for precise tuning and table trim.
  • Multiple traction control strategies (JUST ADD A FRONT WHEEL VSS like this)
  • Built-in 3-step rev limiter / launch control with flat shift and burnout rev limiter
  • Time based timing / boost increase after launch
  • Real time barometric correction
  • Internal 4-bar MAP sensor reads up to 44PSI of boost
  • Overboost protection
  • Closed loop boost control (Requires EBC solenoid kit)
  • CO2 based boost control
  • Set boost by RPM and throttle, ground speed, or gear
  • Rally style anti lag
  • Water injection control – on/off or variable
  • Knock sensor input with adjustable sensitivity, crank angle windowing, and more
  • Table switching input. Change fuel and spark maps on the fly for different fuels, nitrous activation, etc.
  • Input for flex fuel sensor – switch between E85 and gasoline on the fly!
  • Supports many aftermarket dashes/displays such as Racepak, Race Technologies, AiM Sports, AEM, Dakota Digital, Autosports Labs, Perfect Tuning, etc.
  • CANBus connector allows interconnection of other MegaSquirt-compatible devices for additional functions (EGT Input, Automatic Transmission Controller, Additional Sensors…..the possibilities are limitless!

What you get in the box:

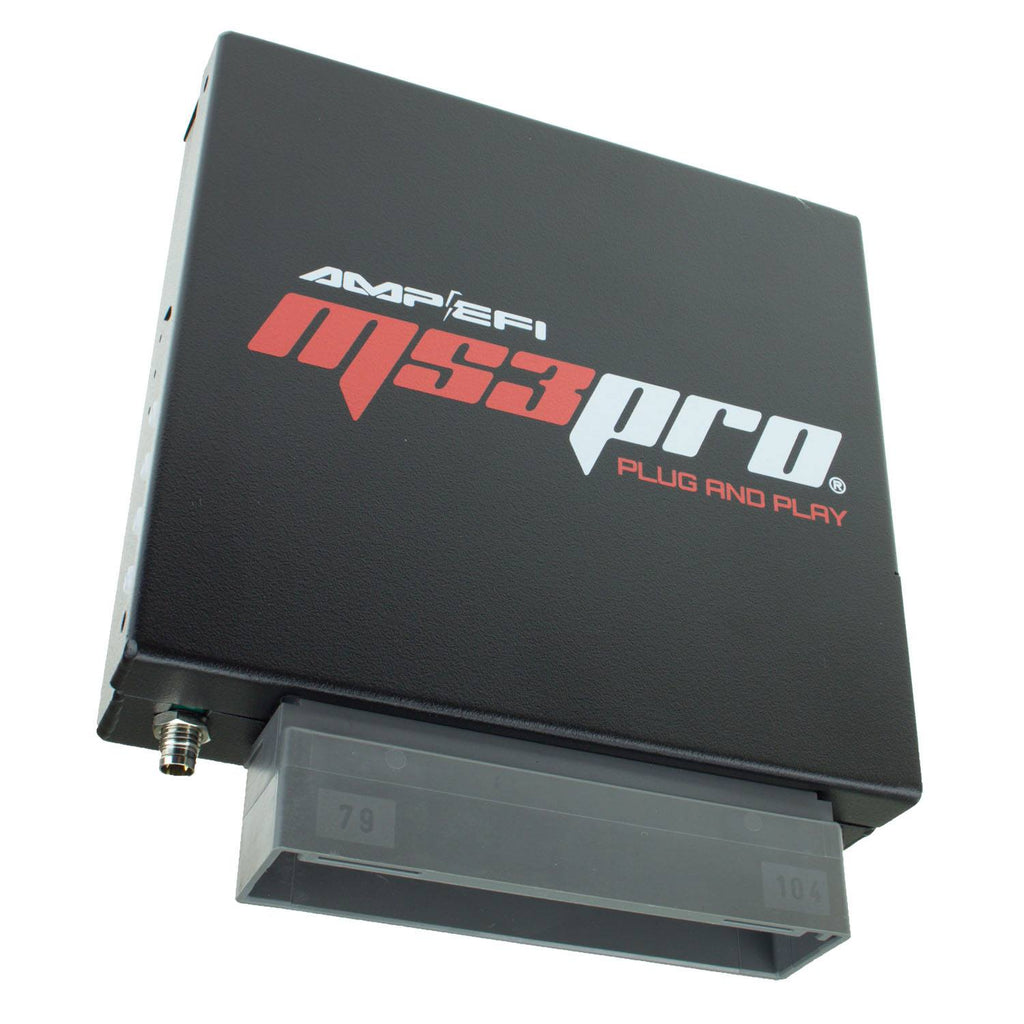

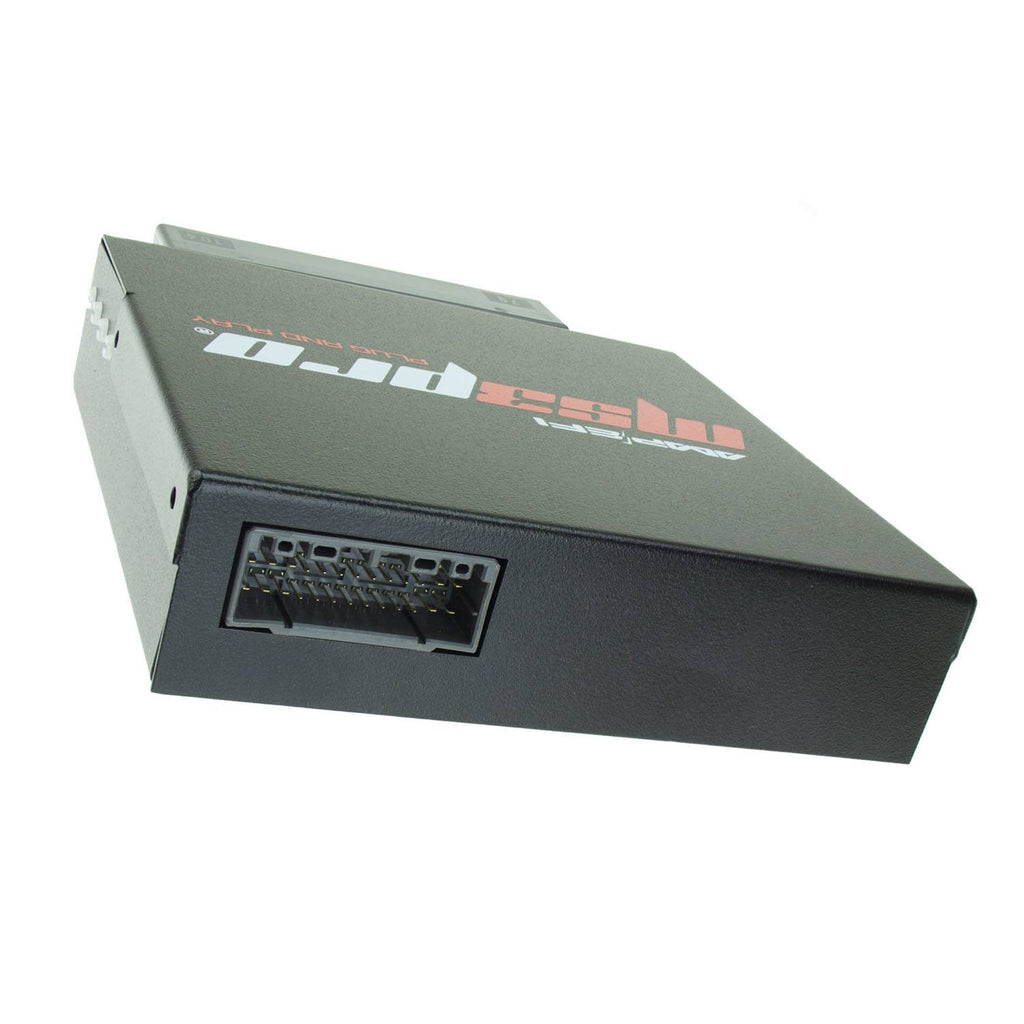

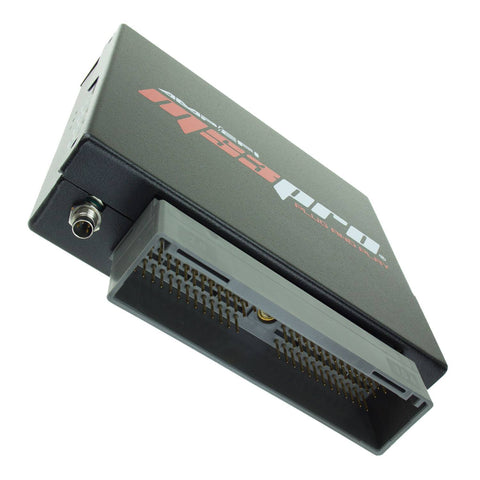

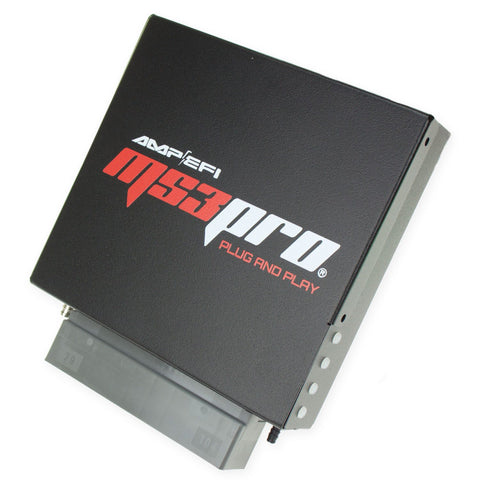

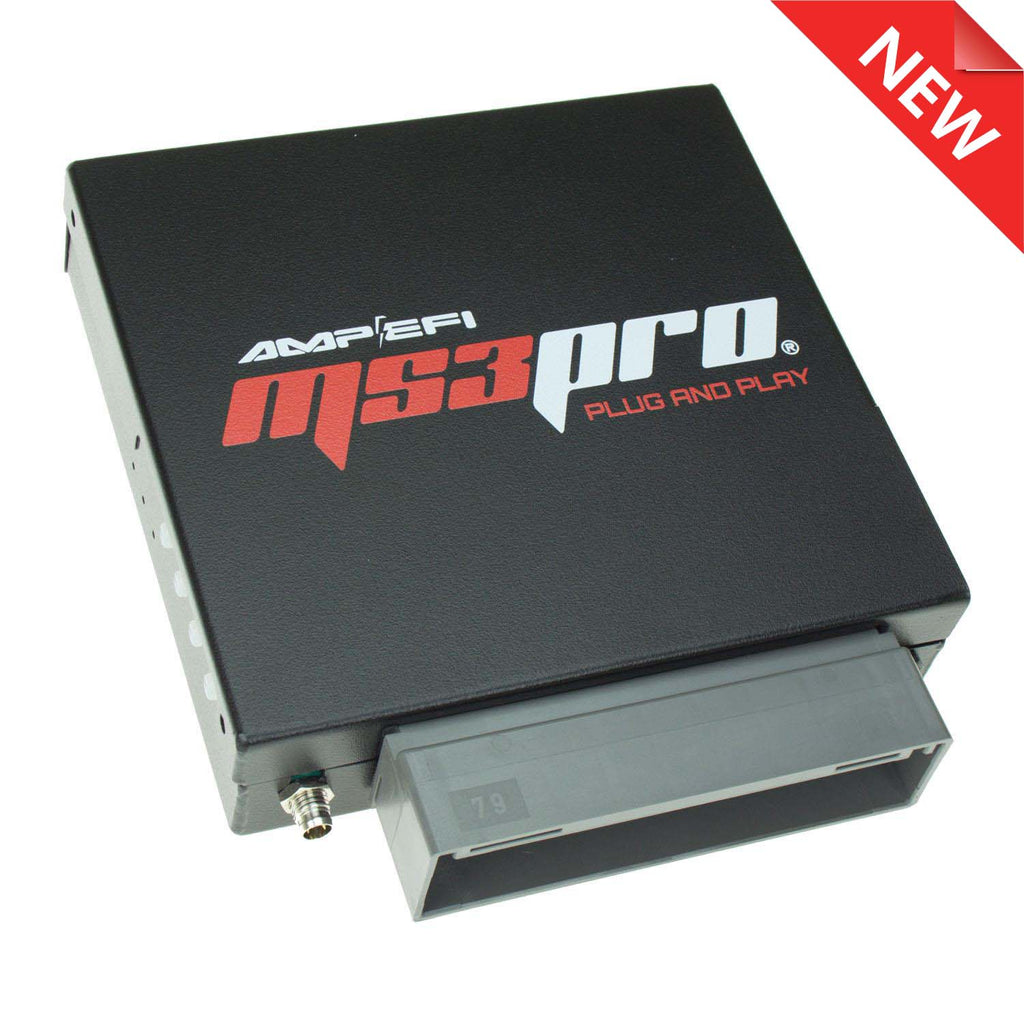

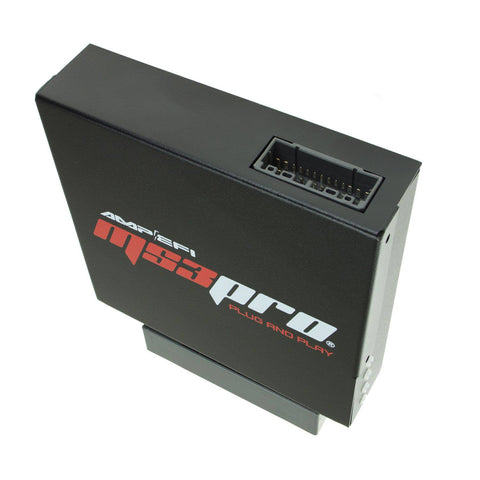

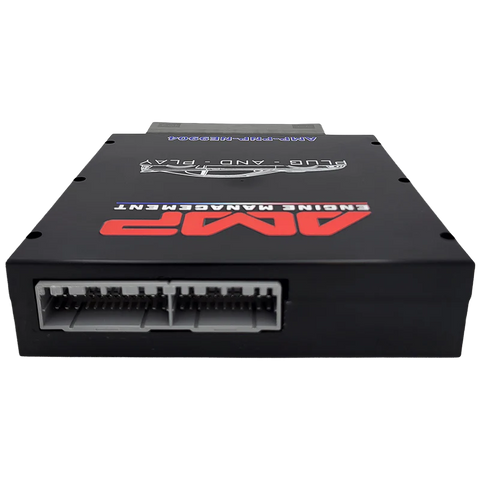

  • 99-04 V8 Mustang GT MS3Pro Plug and Play ECU
  • RS232 tuning cable
  • 8GB USB Drive including:
    • Registered version of TunerStudio and MegaLog Viewer
    • Hardware Documentation & Base Map
  • 6′ Vacuum Hose for MAP Signal and ‘T’ fitting

Staff Picks/ Optional Extras:

Stay tuned for 03-04 Terminator Cobra & 96-98 V6 & V8 models arriving soon!
