Suits: Honda S2000 AP1 (00-04), AP2 (05) non-DBW
Includes: Plug'n'Play adaptor harness, M14 x 1.5 air temp sensor with matching plug and pins, auxiliary I/O 16 Pin Tyco plug and pins.
Notes: Non Drive-By-Wire (DBW) application only.

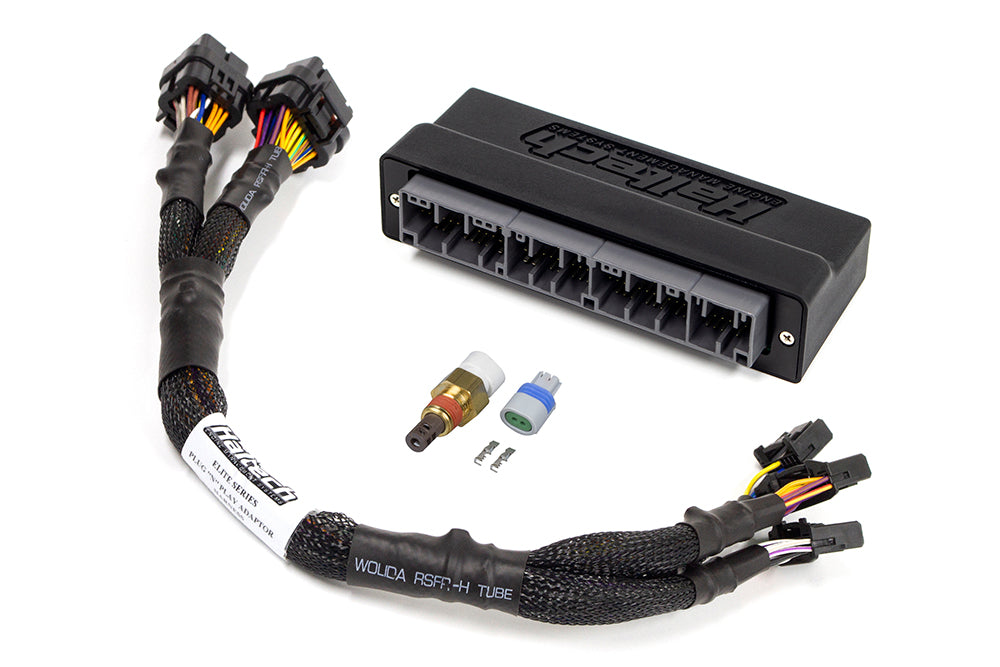

ADAPTOR OVERVIEW
This adaptor plugs directly into your Haltech Elite ECU and has a set of factory connectors on the other side which plug straight into the factory harness. A quick and easy plug'n'play upgrade solution.
- A simple Haltech Plug'n'Play product that allows plugs directly into your car's factory harness.
- The quick start guide will walk you through installation of the Haltech Plug'n'Play adaptor into your vehicle.
- When purchased as a kit with a Haltech ECU, this product is accompanied by the full ECU manual and Software located on the CD or USB key.
SUPPORTED OEM FUNCTIONALITY:
- Idle Control (BAC)
- Thermofan
- Tachometer
- A/C Request and Control
- Engine Control Relay
- Fuel Pump
- Electrical Power Steering Load Detect
- Knock Sensor 1
- Coolant Temperature Sensor
- Air Temperature Sensor
- O2 Sensor Front & Rear
- Check Engine Light
- Throttle Position Sensor
- Vehicle Speed Sensor
- VTEC Oil Pressure Switch
- VTEC Solenoid
- Air Pump Relay (E1500 Only)
- Factory Map Sensor
- Alternator Control
- Brake Pedal Switch
- Electrical Load Detect
- S2000 Coolant Gauge
