OUT OF STOCK UNTIL FURTHER NOTICE
Spartan 2 OEM will only work with genuine Bosch LSU 4.9 sensors, clone sensors are not compatible.

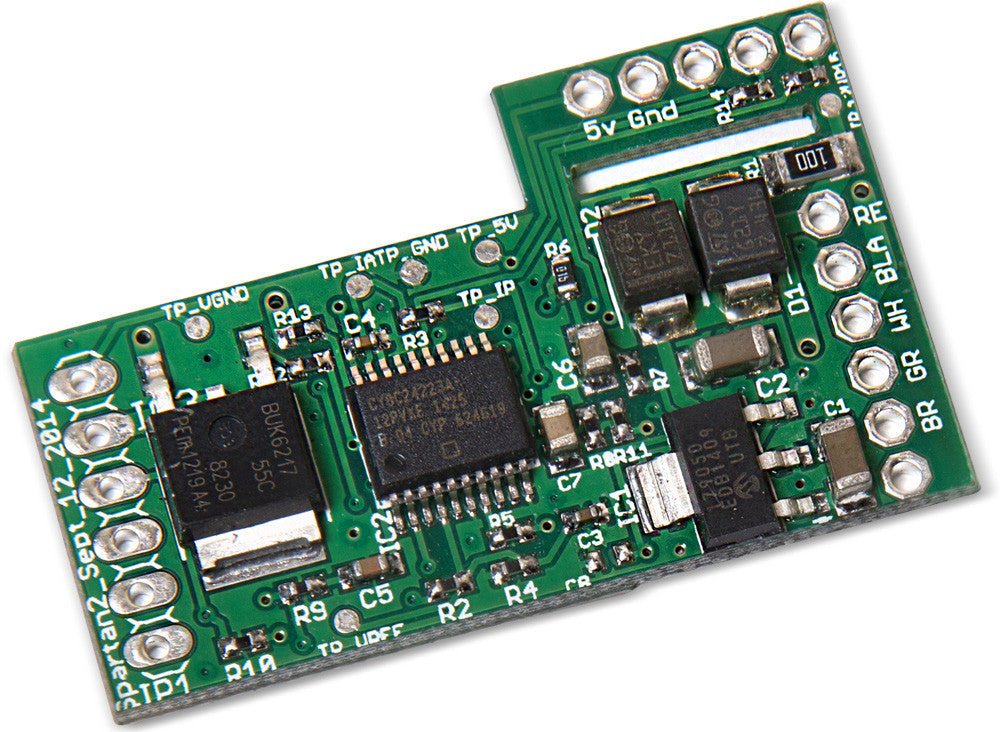

Spartan 2 OEM is a low-cost, miniature Wideband O2 Controller suitable for integration into your own products/projects. Spartan 2 OEM is a complete Wideband O2 Controller requiring only an external inline fuse on 12[V] supply.
Spartan 2 OEM is available in two versions' Spartan 2 OEM and Spartan 2 OEM I2C. Spartan 2 OEM has; Linear Output, Simulated Narrowband Output, and LED Output, but it does not have I2C communications. Spartan 2 OEM I2C has I2C communications but it does not have; Linear Output, Simulated Narrowband Output, or LED Output.
The default I2C Address for Spartan 2 OEM I2C is 1, this can be changed by the user to between 1 to 15 inclusive.
For new designs, Spartan 2 is recommended over SLC OEM.
For evaluation, we recommend Assembled Bosch LSU 4.9 Connector which solders directly to Spartan 2 modules.
Note: Earlier versions of Spartan 2 OEM were made with all high-temperature automotive grade components, current versions use a mix of industrial and automotive grade components due to obsolescence of key automotive-grade components.
Spartan 2 OEM Technical Specifications:
- Dimensions: 40mm x 24mm
- Compatible with Bosch LSU 4.9
- Utilizes Bosch LSU 4.9's built-in calibration resistor; does not require Free Air Calibration
- Manufactured with all High-Temperature Automotive Qualified (AEC Q100) components
- Accuracy: 0.01[Lambda]
- Typical Response Time, Free Air to 0.8[Lambda]: 150[ms]
- Integrated Power Supply Over-Voltage, Over-Current, and Reverse Polarity Protection
- Outputs: Linear Output, Simulator Narrowband Output, LED Output to show sensor temperature
- Integrated 5v Power Supply
- Operating Voltage 8[V] to 18[V]
- Typical 12[V] Operating Current: 1[A]
- Max 12[V] Operating Current: 3[A]
- Operating Temperature: -40[C] to +125[C]
- Lambda Range Linear Output: 0[V] @ 0.68[Lambda] linear to 5[V] @ 1.36 [Lambda]
- Narrowband Switch Point @ 1[Lambda]
Spartan 2 OEM I2C Technical Specifications:
- Dimensions: 40mm x 24mm
- Compatible with Bosch LSU 4.9
- Utilizes Bosch LSU 4.9's built-in calibration resistor; does not require Free Air Calibration
- Manufactured with all High-Temperature Automotive Qualified (AEC Q100) components
- Accuracy: 0.01[Lambda]
- Typical Response Time, Free Air to 0.8[Lambda]: 150[ms]
- Integrated Power Supply Over-Voltage, Over-Current, and Reverse Polarity Protection
- Outputs: Digital I2C
- Integrated 5v Power Supply
- Operating Voltage 8[V] to 18[V]
- Typical 12[V] Operating Current: 1[A]
- Max 12[V] Operating Current: 3[A]
- Operating Temperature: -40[C] to +125[C]
- Lambda Range I2C: 0.376[Lambda] to Free Air
- Up to 16 Spartan 2 OEM I2C can share the same I2C Bus
- Arduino example code
Spartan 2 OEM Lean Burn Technical Specifications:
- Dimensions: 40mm x 24mm
- Compatible with Bosch LSU 4.9
- Utilizes Bosch LSU 4.9's built-in calibration resistor; does not require Free Air Calibration
- Manufactured with all High-Temperature Automotive Qualified (AEC Q100) components
- Accuracy: 0.1[%] Oxygen Concentration
- Range: 0[%] to 21[%] Oxygen Concentration
- Linear Output: 0[V] @ 0[%] O2 linear to 5[V] @ 21[%] O2
- Typical Response Time 21[%] O2 to 0[%]: 200[ms]
- Integrated Power Supply Over-Voltage, Over-Current, and Reverse Polarity Protection
- Outputs: Linear Output, Simulator Narrowband Output, LED Output to show sensor temperature
- Integrated 5v Power Supply
- Operating Voltage 8[V] to 18[V]
- Typical 12[V] Operating Current: 1[A]
- Max 12[V] Operating Current: 3[A]
- Operating Temperature: -40[C] to +125[C]
